winding pipe


Quick Details

Place of Origin:Zhejiang, China

Grade:PE

Shape:Round

Length:Customized

Usage:Protective wire

Hardness:high strength

Alloy Or Not:Non-Alloy

Temper:T3 - T8

Wall Thickness:normal

Tolerance:±1%

Processing Service:other

Color:Customers Request

Sample:Avaliable

quality:best quality

Packing:Standard Package

advantage:fast delivery

Description

Product description

Material: Made of PE material.

Usage: first fix one end of the starting point with the protective belt, and then surround the cable in a clockwise direction to tighten the wire harness as a whole.

Application: It can protect the wire from wear and insulation, and improve the appearance of the bending of the wire.

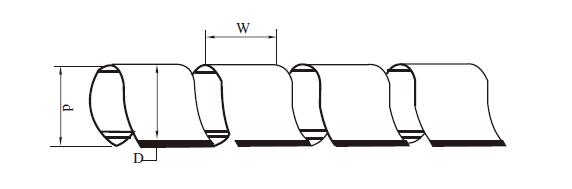

编 号
             Item NO.
外 径(D)
             (mm)
螺距(W)
             (mm)

壁厚
  (mm)

包 装
             Packing
SZY-4450.628米/卷
SZY-6670.714米/卷
SZY-88110.70.5米/卷
SZY-101011.50.78米/卷
SZY-1212140.95.5米/卷
SZY-141414.50.94.5米/卷
SZY-1616150.94米/卷
SZY-1818161.03米/卷
SZY-202017.51.22.8米/卷
SZY-222219.51.22.5米/卷
SZY-2525211.32米/卷
SZY-2828221.51.8米/卷
SZY-303023.51.51.5米/卷
