Product explanation
Material quality: 316/304/201 stainless steel, super bearing capacity.
Color: conventional white steel natural color can be customized spray plastic, plastic coated other colors
Special point: Reusable installation is quick and easy.
Usage: It is suitable for engineering, aviation, ship and indoor and outdoor places such as wet, high temperature and cold.

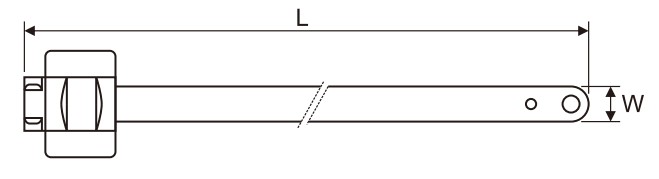

Item Code 型 号 | Length 长 度 L | Width 宽 度 W | Thickness 厚 度 T | Max. Bundle Diameter 最大捆扎范围 | Min. Tensile Strength 最小拉力 |
mm | mm | mm | mm | KGS | |
SZY-150S | 150 | 9.5 | 0.4 | 33 | 100 |
SZY-190S | 190 | 9.5 | 0.4 | 46 | 100 |
SZY-250H | 250 | 9.5 | 0.4 | 65 | 100 |
SZY-300H | 300 | 9.5 | 0.4 | 81 | 100 |
SZY-350H | 350 | 9.5 | 0.4 | 97 | 100 |
SZY-400H | 400 | 9.5 | 0.4 | 113 | 100 |
SZY-450H | 450 | 9.5 | 0.4 | 129 | 100 |
SZY-490H | 490 | 9.5 | 0.4 | 141 | 100 |
SZY-550H | 550 | 9.5 | 0.4 | 161 | 100 |
SZY-600H | 600 | 9.5 | 0.4 | 176 | 100 |
SZY-650H | 650 | 9.5 | 0.4 | 192 | 100 |
SZY-700H | 700 | 9.5 | 0.4 | 208 | 100 |
